LED aircraft warning lights medium intensity obstruction light aviation light for tower crane aircraft warning beacon aircraft warning lights on towers type A
Detailed introduction
LED aircraft warning lights, specifically medium intensity obstruction lights and aviation lights for tower cranes, are essential safety features for tall structures. These lights serve as beacons to alert aircraft of potential obstacles, enhancing aviation safety.
The medium intensity obstruction lights are designed to be highly visible from a distance. They emit a bright LED light that can be easily spotted by pilots, even in low visibility conditions. These lights are crucial for tower cranes, which can reach significant heights and pose a risk to passing aircraft.
Aviation lights for tower cranes are specifically designed to meet the unique requirements of these structures. They are durable and weather-resistant, able to withstand the harsh conditions often encountered on construction sites. The lights are also designed to be energy-efficient, reducing operating costs.
The aircraft warning beacons on towers play a vital role in ensuring the safety of air traffic. They help pilots navigate around tall structures and avoid collisions. These lights are typically installed on communication towers, wind turbines, and other tall structures.
Overall, LED aircraft warning lights are an important investment in safety. They provide a visible warning to aircraft, reducing the risk of accidents and ensuring the safety of both air traffic and those on the ground.LED aircraft warning lights medium intensity obstruction light aviation light for tower crane aircraft warning beacon aircraft warning lights on towers type A.
Overview:

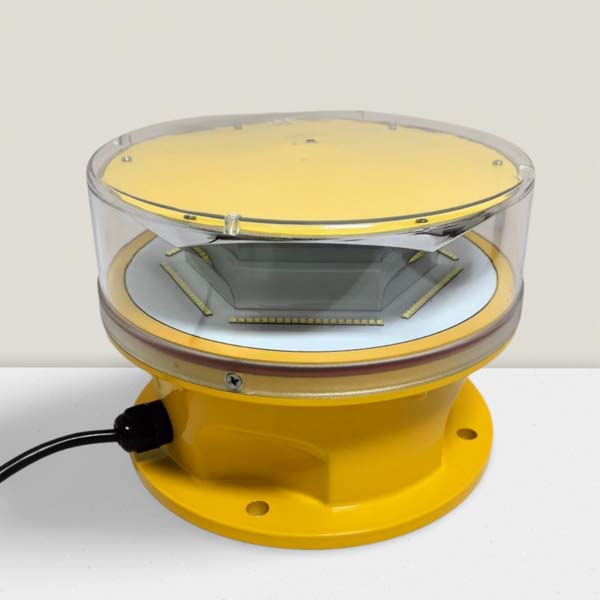

The Aviation warning light L-865, an aircraft warning light for buildings designated as AO-MI-A2, flashes in white color both during the day and at night. In accordance with ICAO and FAA regulations, this medium intensity aviation obstruction light is designed to mark the top of an obstacle that is indicated by medium-intensity obstacle lights of Type A. The top of the object is more than 105 meters above the level of the surrounding ground or the elevation of tops of nearby buildings less than 150 meters. Moreover, this obstruction light needs to keep flashing at a rate of 20-60 flashes per minute (fpm) throughout the night and for 24 hours. We utilize high-intensity CREE LEDs as the light source, ensuring stable quality and a long service life for this aviation obstruction lamp.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-865.
Features:
1. Utilize super bright CREE brand LEDs, offering high intensity while consuming less energy.
2. The input voltage is available in either DC (12-48V DC) or AC (100-265V AC 50-60Hz).
3. The obstruction light protective cover features a unique design and is made of UV-protected polycarbonate.
4. The efficient photometric design provides excellent light distribution, ensuring compliance with ICAO and FAA requirements.
5. The base material is die-cast aluminum, which has strong corrosion resistance, provides protection against shock and vibrations, and offers a long service time.
6. A special valve is installed under the base to ensure that air can pass through while water is prevented. This helps keep the temperature of the FAA lights type A medium intensity obstacle light, aircraft warning lights, and ICAO aviation light for towers from getting too high.
7. Equipped with a built-in photocell for operation during both daytime and night.
8. Provides surge and lightning protection.
9. Various optional functions are available, such as GPS synchronous flashing, sequence flashing, alarm relay, and more.
Specification:
|
Product Name |
LED aircraft warning lights medium intensity obstruction light aviation light for tower crane aircraft warning beacon aircraft warning lights on towers type A |
|
Mode NO.: |
AO-MI-A2 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
20,000cd±25% (Daytime), 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Type A: 20-60FPM,
|
|
Operation Mode: |
24 hours |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Aviation obstacle lights average Power consumption<15W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.8kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

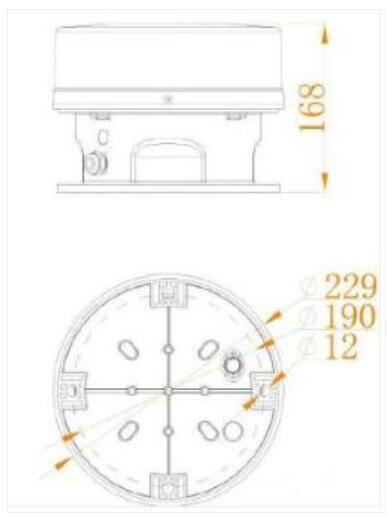

Dimension & Installation:
Applications:
The LED aircraft warning lights, specifically the medium intensity obstruction light and aviation light for tower cranes (type A), have a wide range of applications in various locations and scenarios.
In construction sites where tower cranes are in operation, these lights are essential. Tower cranes can reach significant heights and pose a potential hazard to aircraft. The aviation lights for tower cranes act as beacons, alerting pilots to their presence. They help ensure the safety of both the construction workers on the ground and the aircraft flying overhead.
On communication towers, these warning lights are crucial. As communication towers are often located in areas with high air traffic, the medium intensity obstruction lights and aircraft warning beacons help pilots navigate safely around them. These lights are designed to be highly visible from a distance, even in adverse weather conditions.
In industrial areas with tall structures such as chimneys or storage tanks, the LED aircraft warning lights play a vital role. They mark the height of these structures and prevent collisions with aircraft. The type A lights are designed to meet the specific requirements of these industrial applications, providing reliable and durable warning signals.
Overall, the LED aircraft warning lights for tower cranes and other tall structures are an important safety measure in various locations and scenarios, enhancing aviation safety and protecting lives and property.
